For an object, determine the point of view and orientation


For several objects, determine their position with respect to each other:

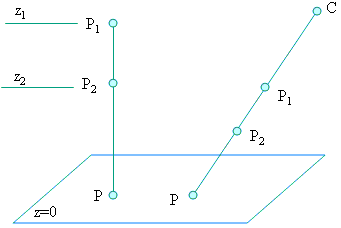

Depth Comparison If two points P₁(x₁, y₁, z₁) and P₂(x₂, y₂, z₂) result in the same projection, compare the distance between each of them and

• the projection plane for the parallel projection
• the projection center for the perspective projection.

Detection algorithms:

• object-space methods
• image-space methods.

General Idea

• We consider that the user's eye is on the projection plane for the parallel projection.
• For the perspective projection, we use the projection matrix to deform the scene first.
• The projected image is then be obtained with a parallel projection.
• Thus, we only need to solve the problem for the parallel projection.

Back-Face Detection

• An object-space method.
• Consider the normal to a surface N and the view vector V. If angle(V, N) < 90, then the face is a back face.
• In the case where the projection is on the (0xy) plane, if the z component of the normal, Nz > 0, then the face is hidden.
• Only works if the object is closed. Can be used to preprocess the scene.

Z-Buffer Algorithm

• An image-space method.
• For each pixel (x,y) in the projection plane, keep the value of the closest z value that has been drawn on it.
• 1. Initialize the projection area to a background color.
• 2. Initialize the z-buffer to a maximal number (back clipping plane).
• 3. Scan-convert one polygon (triangle) at a time. For each converted point, compare its z with the value stored for that pixel in the z-buffer. If the new value is smaller, draw the point.

A-Buffer Algorithm

• Similar to the z-buffer method, only considers transparency.
• For each pixel record all the scan-converted points, with depth and opacity parameter.
• Compute the color of the pixel based on all this information.
• color(P) = a2 * color(P2) + (1-a2) (a1*color(P1) + (1-a1) (a3*color(P3) + (1-a3)*background))
  = 0.8 c2 + 0.2 (0.3 c1 + 0.7 (0.5 c3 + 0.5 bcgr)
  = 0.8 c2 + 0.06 c1 +  0.065 c3 + 0.065 bcgr

Hidden Surfaces in OpenGL

• Enable the z-buffer:
  glEnable(GL_DEPTH_TEST);


• Disable the z-buffer:
  glDisable(GL_DEPTH_TEST);


• Clear the z-buffer:
  glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

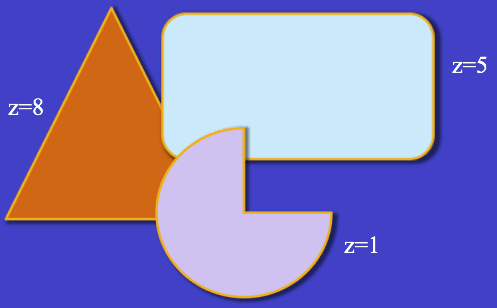

Painter's Algorithm

• Suppose that we have a set of polygons or other objects sorted by the distance to the view plane.
• Some of them might overlap, in which case the one closer to the plane needs to appear in front.
• We can simply "draw" or render them in depth order starting from the farthest one (back to front). The color of a polygon that is render at any step replaces any other color that might have been there before.
• It works very well when all the objects are parallel to the view plane, like in 2D with a z component or 2.5D graphics.

Depth Sorting

• Object-based method for 3D hidden surface removal, a variation of the painter's algorithm.
• In 3D we don't have a single z coordinate for each polygon, we have an interval [zmin, zmax] called z extent.
• If the z extents of two polygons don't intersect we can render them back to front.
• If their z extents intersect but their x extents or y extent don't intersect, we can paint them in any order.
• Otherwise in the worst case we have to split some polygons by the intersection lines and render them separately.
