In this lab we will start writing a game of Skittles, which you will complete in the homework. Before you start, you will need to have Blender installed on your computer for the 3D objects to work. If you haven't done it yet, you can install it from www.blender.org.

Here is an example of the finished game (http://www.cs.iusb.edu/~dvrajito/teach/i355/skitGL/). Note: I added one spotlight to the game area. The big pink rectangle is the New Game button.

Create a new Unity 3D Core project called Skittles. Download the following resources a local folder:
bump.mp3
push.mp3
peg.blend
spinner.blend

In Unity, create the folders in the Assets: Art, Scenes, Sounds, and Scripts. From Windows, drag the the blend files to the Art folder and the mp3 files into Sounds. Save the scene as skittles in the Scenes folder you created.

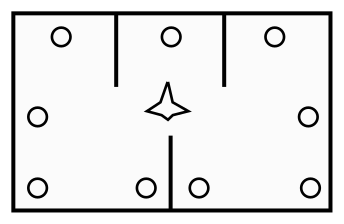

Here is the configuration for the game:

Click on the camera object. In the Inspector, switch it from Perspective to Orthographic, then in Clear Flags switch to Solid Color. Adjust the background of the camera with a color of your choice. Switch the Layout to Default if it's not that already (top right of the windows, above the inspector). Use the right-click and drag to bring the rectangle facing the camera into view. In the top right corner of the scene there is a white square with some colored arrows marked x, y, and z (the gizmo). Click on the square to turn the display of the scene to Iso.

Here are some useful tools while editing a 3D scene:

• The hand tool (top left) moves around the view of the scene.
• Right-click and drag rotates the view
• Scroll to zoom in and out
• The little gizmo at the top right of the scene (not the whole window, just the scene editor): the cube in the center switches from Perspective projection to Orthographic (or isometric) and back; the arrows marked x, y, and z let you switch directly to that view.

From the Create menu, 3D Object under the Hierarchy, add a Quad object to the scene and call it floor. Click on the Art folder, then from the + button above it, create a new material and call it floorColor. In the inspector, click on the rectangle next to Albedo and select a color for the floor, such as dark red.

Select the floor quad again from the hierarchy. Under Materials in the inspector you should see an array of size 1 (click on the arrow next to it to expand it if necessary). Set the Element 0 of this array with the color material that you just defined. Set the scale of the floor to 15 over x and 8 over y, then its rotation around x to 90. If you run the app now, it will have disappeared. This is because the camera is looking at it sideways.

To be able to see the floor, let's re-orient the camera so that it faces it at a different angle. Set the rotation of the camera over x to 10 degrees. You should see a little of the floor now. Set the x rotation to 75 degrees and the coordinates to (0, 2.5, 0). You should see a good part of the floor now. Then set the position of the floor object to (0, 0, 0). The entire floor should be visible now in the application window.

Add a box collider component to the quad from Physics.

Add 4 walls to the box by using quads and give them appropriate names. The front and back ones need to be scaled at 15 over x and you can use 4 over y, then the position should be at 0 over x, 2 over y in both cases, and -4 and 4 over z. You don't need to rotate the front and back walls.

The left and right walls will need to be rotated by 90 over y. You should scale them at 8 over x and 4 over y. The position should be at -7.5 and 7.5 over x, 2 over y, and 0 over z. Check with the Game tab and if any of your walls is not visible, add 180 to its rotation over y (only the front facing side of the quad is visible).

Create a material for the walls in a lighter color. When you set the color for it, set the value of Alpha (transparency) to something around 100 (over 255). You can adjust this later to look better. Set the Rendering Mode for this material to Transparent.

Add a box collider to each of them. Finally, add the 3 smaller walls that create the separations inside the box. Note that two of the walls left and right need to be rotated by 90 degrees over y and scaled by 8 over x, to match the settings of the floor.

In case your box coordinate and dimensions don't quite work, here are some settings I've used; these actually work well with the camera using a Perspective projection:

Object	Position	Rotation	Scale
Camera	(0, 7,22, -4.43)	(60, 0, 0)	(1, 1, 1)
floor	(0, 0, 0)	(90, 0, 0)	(15, 8, 1)
front wall	(0, 1.5, 4)	(0, 0, 0)	(15, 3, 1)
back wall	(0, 1.5, -4)	(0, 0, 0)	(15, 3, 1)
left wall	(-7.5, 1.5, 0)	(0, 90, 0)	(8, 3, 1)
right wall	(7.5, 1.5, 0)	(0, 90, 0)	(8, 3, 1)

On your own: add the smaller 3 quads for the interior walls in the overall figure of the box above.

Visible face.
Quads have a single visible face. Once you have all your objects in place, if some of your quads are not visible from the camera position you chose, duplicate those quads (Edit menu or Ctrl-D) and then rotate them around y by another 180 degrees or equivalent. For example, if the angle was 0, replace it with 180. If it's 90, you can replace it with -90 and the other way around.

Drag the peg object from the Arts folder to the scene. You can set its color by creating a new material for it, like you did for the other objects.

Add a Rigidbody component to it from Physics with a mass of 0.03. Then from Physics again, add a Box Collider to it. In the inspector, click on Edit Collider, switch to a view facing the front of the peg, then edit the box to overlap the object as well as it can. Leave the peg floating a little above the floor, then play the app. You should see it fall to the floor and rest there. You will also probably need to scale the peg object down some.

Add a script component to it called PegManager and for now just declare a public bool attribute called standing and set it to true.

Then from the Tag at the top in the inspector, click on Add Tag. In the list of tags, click on the + and then add the tag peg. Click again on the peg object and set its tag to "peg".

Add a component to the Peg of type AudioSource from the Audio category. Add the two sounds to the resources in the folder Sounds and then set the Audio Clip of the audio source component as the sound bump.mp3. If you run the application now, you'll notice that you hear the sound at the start. Un-check the option Play on Awake in the audio source.

Let's turn this into a prefab so that we can create more copies of it easily. Create a folder called Prefab in the Assets folder. Then drag and drop the object into this folder to turn it into a prefab. After that, you can drag the prefab to the scene to create more instances of it. Use the prefab to create more copies of the peg and place them approximately in the locations marked in the scheme above. You can also duplicate the first peg you have to create more copies so that you don't have to move them far.

Add a Rigidbody component to it from Physics with a mass of 0.1. Click on the Constraints to show the options, then check Y under Freeze Position in this component and X and Z in Freeze Rotation. Under the Rigidbody component, change the Collision Detection mode from Discreet to Continuous Dynamic. This will prevent the spinner from flying through the walls if it goes too fast.

Add an audio source to it and place the sound push in the Audio Clip.

In the Assets, in the Art folder, create a material of type Physic Material and call it bounce. Set the bounciness to 0.8 and both frictions to 0.1. Then drag it over to the hierarchy and apply it to the spinner object. You will find it in the Sphere Collider component under Material. Create a second bounce material with a bounciness of 0.6 and frictions set to 0.4 and set the Material in the Box Collider of the Peg prefab (!) with this material.

Add a script component to the spinner and call it SpinnerManager. Add the following function to this class and call it from the function Start:

public void RollSpin()
{
    GetComponent<AudioSource>().Play();
    GetComponent<Rigidbody>().velocity = new Vector3(Random.Range(-30f, 30f), 0f, Random.Range(-30f, 30f));
    GetComponent<Rigidbody>().AddTorque(new Vector3(0f, Random.Range(-30f, 30f), 0f));
}

Now the spinner should be randomly spinning at the beginning of the run.

Font. Look up a free font on a page such as
www.1001fonts.com
http://www.fontsquirrel.com/

Download a font you like. If it comes in a zip file, extract the files first. Then locate a file with the extension .ttf. Drag this file into Unity, into the Assets folder. You can create a folder for them if you are trying more than one. Now the font should be ready to use. Create an empty object with a legacy Text Mesh component, placed at the top of the window, with the text "Move Count". Select the font you added for it in the Inspector and adjust the font size and the character size. You will most likely need to rotate the object around the X axis to get it to show in the window properly. Add a reference to it of type GameObject in the class SpinnerManager and connect it in the inspector.

Add the following line to the top of the SpinnerManager file (before the class definition):

using UnityEngine.SceneManagement;

Add the following function to this class:

public void NewGame()
{
    SceneManager.LoadScene("skittles", LoadSceneMode.Single);
}

Create button in the scene and call it newGame. In the Hierarchy it will appear under a Canvas object. Set the colors of the button however you like. Then click the arrow next to the button in the hierarchy to show a Text child. Here you can change the label of the button to "New Game".

Back to the button object itself, in the Rectangle Transformation at the top in the inspector, set its coordinates to 0, 0, 0. Now the button should show in the middle of the scene. Change the position of the button in small increments until it shows where you want on the scene when played. If you find a better method for this, let me know. The values (-300, 140, 0) for the position with the width reduced to 120 work well for me.

Then below the Button (Script) component in the inspector, you will see a section called On Click() which should show empty. Click on the + and then under Runtime Only, click on the small circle and select the spinner object from the Scene tab. Then next to it, click on the No Function and choose the SpinnerManager component, and from there, the NewGame function.

Add an extra trigger for the new game on pressing the key N in case the button doesn't show up properly on the screen in the build (it happens sometime).

This will be continued in the homework.
